Workshop Dust Collector Sizing

How it helps

Use it for a focused task

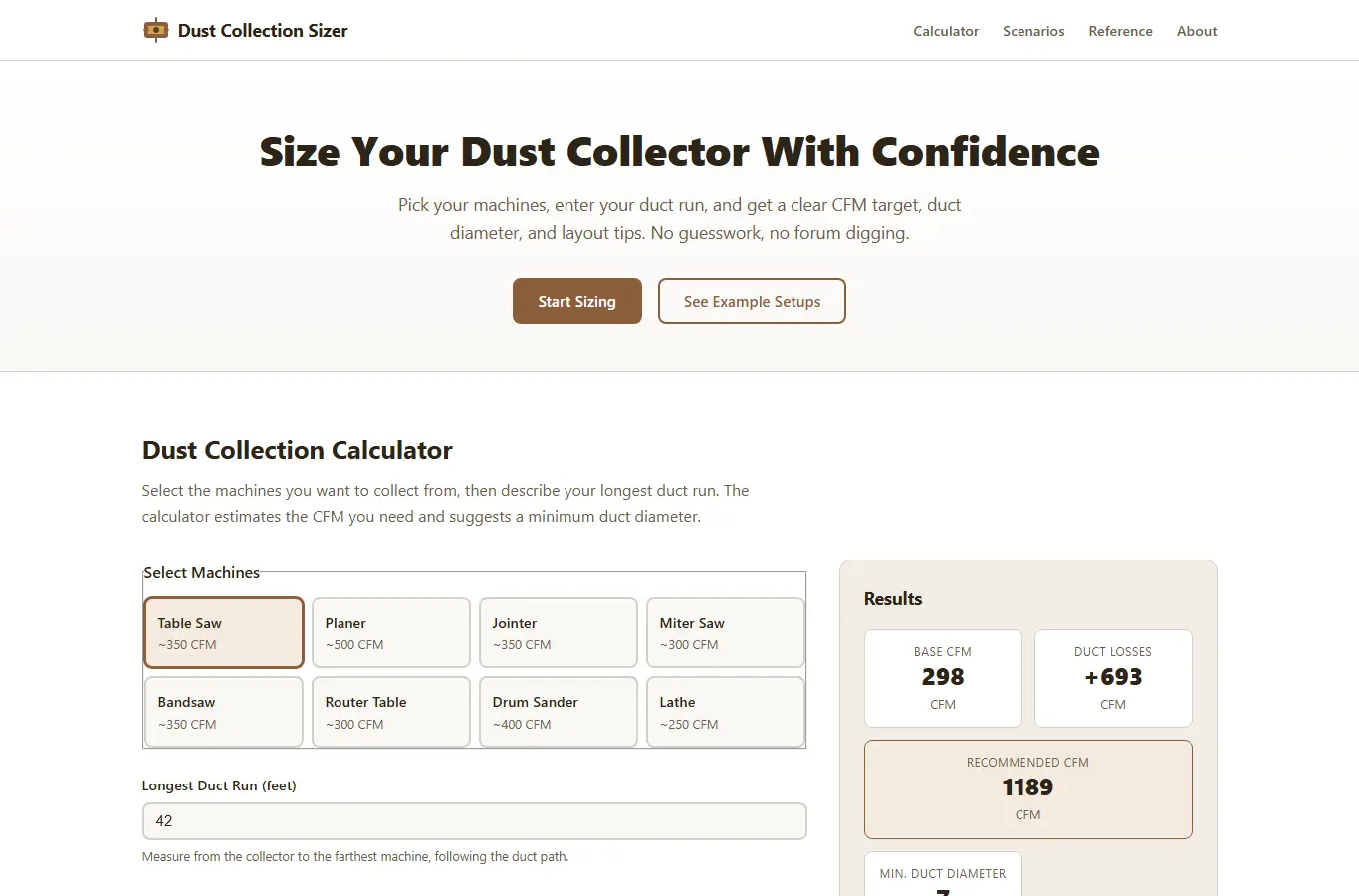

This page helps you size a dust collector for a home woodshop. Pick your machines, tell the calculator how far the duct runs and how many bends you expect, and it estimates the CFM you need, suggests a minimum duct diameter, and flags likely bottlenecks.

You can save multiple shop layouts in your browser so you can come back later to compare upgrades or plan expansions. Start by selecting the machines you want to collect dust from.

Then enter the longest duct run in feet and the number of bends in that run. The calculator adds up the CFM needs, applies a safety factor, and recommends a collector size and duct diameter.

Good next steps

Make the result easier to act on

• Start with the examples or presets if you are unsure what to enter for Workshop Dust Collector Sizing.
• Try one realistic scenario first, then adjust the numbers or notes to compare another path.
• Use save or share from the project footer when you want to return to the same helper later.
• Open a related project below when the result points to a timing, budget, writing, planning, or comparison task.
