Home Electrical Circuit Mapping Assistant

How it helps

Use it for a focused task

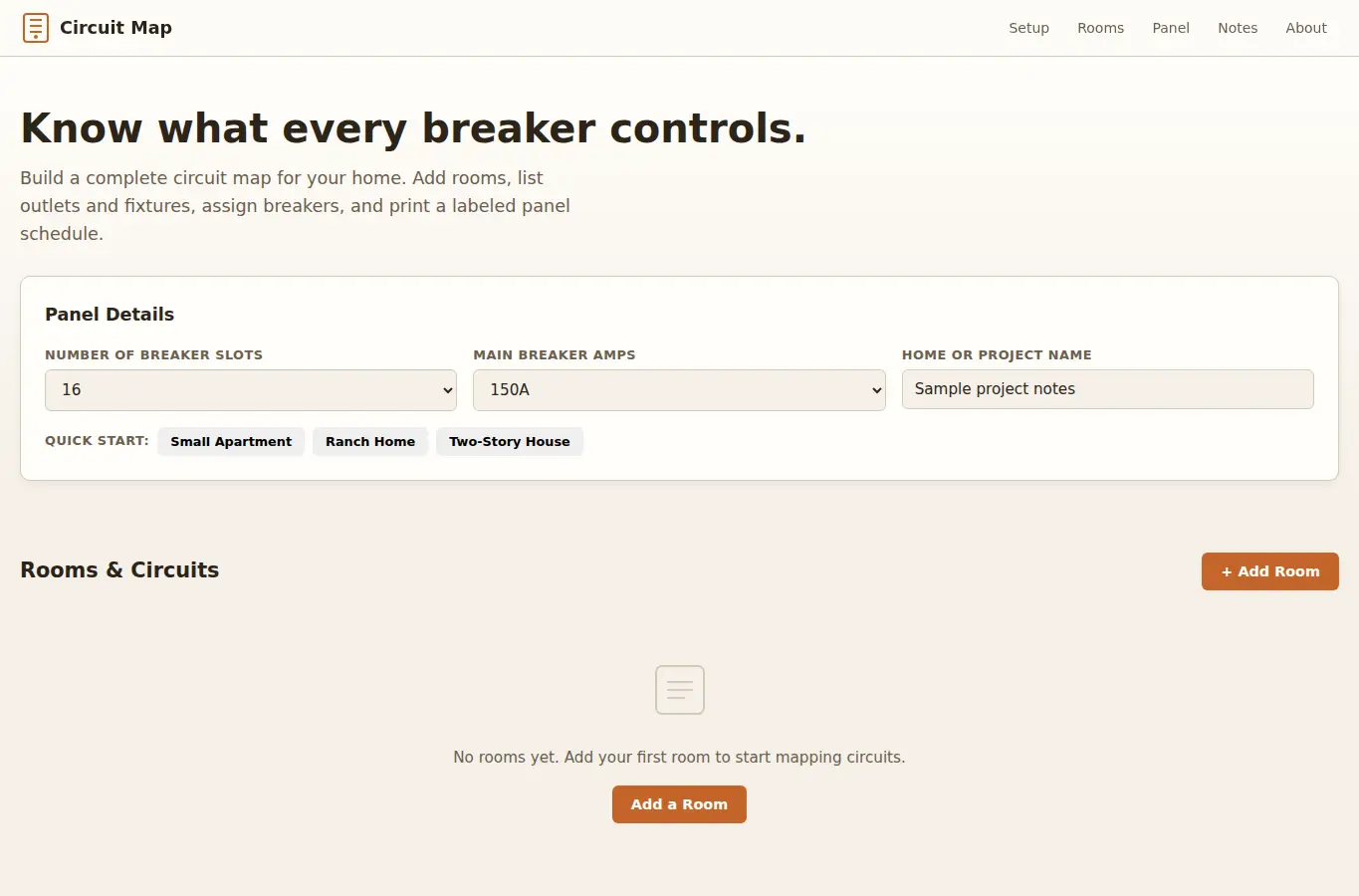

This planner helps you build a complete circuit map for your home electrical panel. You add rooms, list outlets and fixtures, assign each to a breaker, and the tool generates a printable panel schedule and room-by-room reference.

It includes presets for common home layouts, troubleshooting notes for tripped breakers, and a shareable URL so you can revisit and update after renovations. Start by entering your breaker panel details (number of slots, main breaker size).

Then add each room in your home. For every room, list outlets, switches, and fixtures.
