Film Splice Strip Maker – Printable 8mm & 16mm Splicing Guides

How it helps

Use it for a focused task

This project helps Super 8 and 16mm filmmakers create accurate splice strips they can print on cardstock or adhesive paper. Each strip shows frame boundaries, sprocket-hole positions, and cut guides measured to real film dimensions.

The generator supports single splices and multi-frame repair strips, with presets for common tape-splice and cement-splice overlaps. Choose your film format (Super 8 or 16mm) and the number of frames your splice needs to cover.

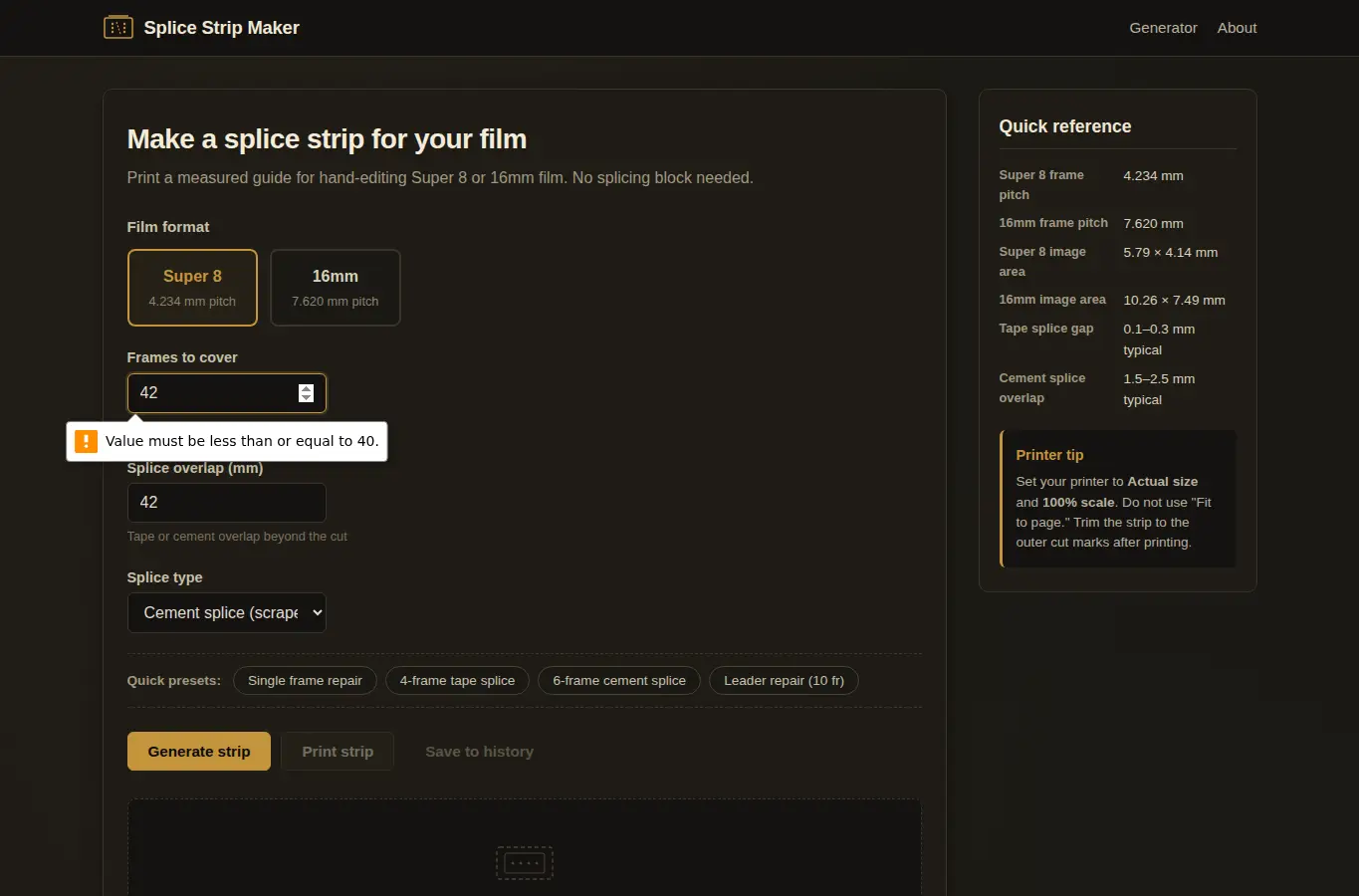

Adjust the splice overlap in millimeters if you are using tape or cement. Click Generate to preview the strip on screen.

Good next steps

Make the result easier to act on

• Start with the examples or presets if you are unsure what to enter for Film Splice Strip Maker – Printable 8mm & 16mm Splicing Guides.
• Try one realistic scenario first, then adjust the numbers or notes to compare another path.
• Use save or share from the project footer when you want to return to the same helper later.
• Open a related project below when the result points to a timing, budget, writing, planning, or comparison task.
